Horizontal Tensile Testing Machine · product category

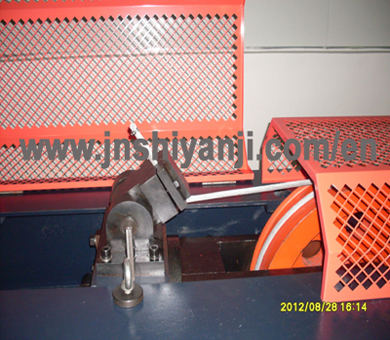

product name :Electronic Wire and Cable Horizontal Tensile Testing Machine
product specifications :CST-500/1000/1500/2000

CST 500, 1000,1500,2000 Eletronic Wire and Cable Horizontal Tensile Testing Machine


  1. Max. testing force: 500KN, 1000KN, 1500KN, 2000KN
  2. relative error of indicating test value: less than ±1% of indicating value.
  3. measuring range of test loading: 2% --100%F.S
  4. resolution of test loading: 1/300000, resolution is not changed in full range without shift control.
  5. control range of constant speed for stress: 2 – 60 N/mm2 . S-1
  6. error of stressed speed: less than ±5%
  7. control range of constant strain: 0.00025/s – 0.025/s
  8. error of strain speed: less than ±5%
  9. resolution of displacement: 0.01mm
  10. loading speed: 600N/s – 60KN/s computer auto-control
  11. stroke of piston: 0.200mm/ customizable
  12. displacement speed of piston: more than 50mm/min
  13. adjustable test space: 0 –10000mm/ 400 times of test sample.
  14. span of frame: more than 600mm / customizable
  15.  height of frame: more than 700mm/ customizable
  16. structure of frame: horizontal type, high rigidity and steadility.
  17. voltage: 380V±10% 50Hz(reliable landing)
  18. size of machine(LWH): 15500*800*700
