Stress corrosion test of prestressed concrete steel


访问人数:177  新闻作者:Susan  新闻来源:  发布时间:2019/12/27 17:08:04


→ISO15630-3 Steel for the reinforcement and prestressing of concrete-Test methods-Part 3: Prestressing steel

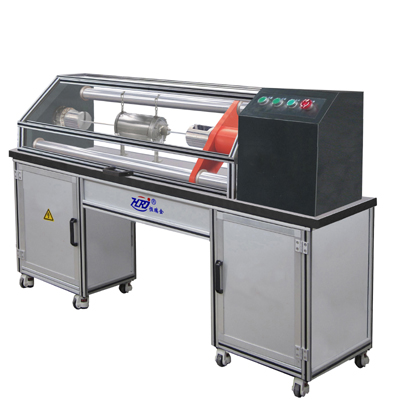

→Six steel specimens are used for stress corrosion tests to determine the time taken for steel to be immersed in a thiocyanate solution at a given constant temperature at a constant tension until fracture.HRJ Tester rigid rack Tester, load acting on the horizontal direction of the closed frame.The time measuring device has a resolution of 0.01h, which can automatically control, stop, keep and record the fracture time with an accuracy of ±0.1h.HRJ Tester;Cylindrical solution corrosion container, imported container material resistance to high temperature, corrosion resistance, closed at both ends, no leakage, ensure no air into.The diameter of the sample is ≤19mm, the inner diameter of the test vessel is > 70mm, the diameter of the test vessel is 19 < d≤50mm, and the inner diameter of the test vessel is > 100mm.


→ISO 15630-3;ISO 6934-3;ISO 6934-4;ISO 14655;ISO 8458-2;AS NZS 4672.2;ASTM E328-2013;ASTM A416M-2012a;ASTM A882M;BS 5896-2012;JIS G3536;JIS Z2276-2012;JIS G3137;EN10391;GB/T10120-2013;GB/T5224-2014;GB/T5223-2014;GB/T5223.3-2017;GB/T13788-2017;GB/T20065-2016;GB/T30828-2014;GB/T3428-2012;GB/T31314-2014;GB/T31304-2014;GB/T30826-2014;GB/T33026-2017;GB/T25823-2010;GB/T33363-2016;GB/T18983-2017;GB/T4240;GB/T15030;YB/T5343-2015;GB/T4357
