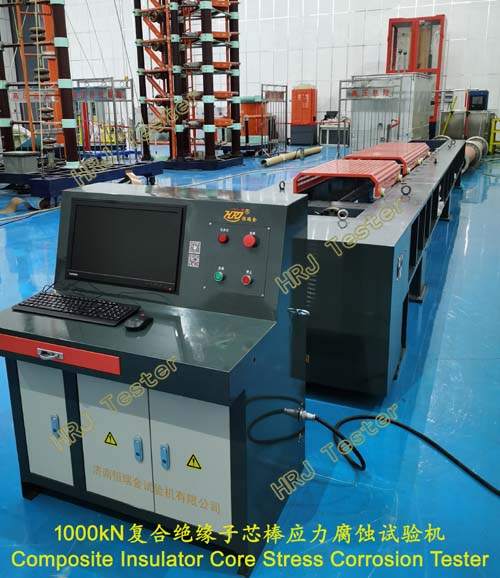

首页 >> 试验机案例 >> 1000kN复合绝缘子芯棒应力腐蚀试验机Composite Insulator Core Stress Corrosion Tester
1000kN复合绝缘子芯棒应力腐蚀试验机，28mm～53mm绝缘子芯棒材料应力腐蚀试验，在20℃±5K温度下，对绝缘子试品施加拉伸负荷，拉伸负荷值为300MPa乘以芯棒横截面积。在盛酸容器中注入硝酸，在此负荷下保持96h。目测不应有可见损伤。
绝缘子规定机械负荷SML试验、逐个试验负荷RTL、破坏负荷试验、芯棒平均破坏负荷MAV试验确定、96h耐受负荷试验检查；hrjtest；绝缘子装配好的芯棒负荷-时间试验；端部装配件与绝缘子伞套间界面的密封试验；端部装配件与伞套间界面的密封检查E2和规定机械负荷SML验证E1；验证装配好的绝缘子芯棒机械特性，校核绝缘子强度-时间曲线位置；损伤极限验证试验，校核绝缘子经过96h70％SML恒定负荷后的损伤极限。
→绝缘子芯棒应力腐蚀试验负荷600kN/1000kN/2000kN；
→应力腐蚀试验负荷分辨力1/±300000F.S（全程分辨力不变）；
→绝缘子芯棒应力腐蚀试验空间＞6000～12000mm（可定制；
→HRJ高刚性、高稳定性、无振动冲击流线型卧式载荷机架；
→HRJ绝缘子芯棒应力腐蚀试验高强合金盛酸容器；HRJ绝缘子芯棒应力腐蚀试验专用拉伸附具；
→HRJ绝缘子芯棒应力腐蚀试验应变测量装置；HRJ绝缘子芯棒应力腐蚀试验机检定校准装置；
→内置全数字闭环、多通道、多功能、易操控的HRJ-Test绝缘子芯棒应力腐蚀试验软件/可定制英文版。
→600kN聚合物绝缘子机械性能试验机；1000kN绝缘子机械破坏负荷试验机；2000kN复合绝缘子拉力负荷试验机；绝缘子60％SML96h耐受试验；HRJ Tester；绝缘子70％SML96h耐受试验；混合绝缘子芯棒应力腐蚀试验机；绝缘子100％SML 1min耐受试验；绝缘子芯棒高温应力腐蚀试验机；绝缘子机械特性试验机；绝缘子定型试验；绝缘子突然卸载预应力试验；绝缘子热机预应力试验机； -20℃～-25℃突然卸载预应力试验；30％SML拉伸负荷突然卸载试验；﹢50℃～-35℃热机预应力试验；绝缘子50％SML持续机械负荷试验；绝缘子纤维芯棒负荷-时间机械特性试验；10000N.m绝缘子扭转负荷试验机；耐张复合绝缘子压缩屈曲负荷试验机；绝缘子弯曲负荷试验机；绝缘子机械震动载荷试验机；绝缘子非标准机械应力试验机；绝缘子工作负荷-偏移试验；棒形绝缘子滑动负荷试验机；B腕臂复合绝缘子机械性能试验机；Z支柱复合绝缘子抗扭破坏负荷试验机；H横担复合绝缘子机械弯曲破坏负荷试验机；X悬式耐张绝缘子机械强度试验机；D悬式定位绝缘子拉伸负荷试验机；绝缘子设计试验；绝缘子定型试验；绝缘子界面和端部装配件连接试验；绝缘子型式试验；验证复合绝缘子主要特性；绝缘子抽样试验；实心和空心绝缘子拉伸性能试验机；
10000N.m300kN绝缘子拉压弯扭测试系统，用于绝缘子在承受拉力、压力、弯矩、扭矩下的机械性能试验，测定绝缘子机械强度性能。绝缘子70%弯曲负荷下偏移量试验；恢复后剩余偏移量测试；弯曲破坏负荷试验；拉伸破坏负荷试验；抗扭破坏负荷试验；滑动负荷试验； 绝缘子最大设计弯曲负荷（MDCL）验证试验；额定弯曲负荷（SCL）验证试验；最大运行负荷（MML），规定机械负荷（SML），最大运行负荷下顶端偏移量；装配好的芯棒负荷-时间试验；96h耐受负荷检查；用于绝缘子机械负荷试验：70%弯曲负荷下偏移量试验；恢复后剩余偏移量测试；弯曲破坏负荷试验；拉伸破坏负荷试验；抗扭破坏负荷试验；滑动负荷试验； 绝缘子最大设计弯曲负荷（MDCL）验证试验；额定弯曲负荷（SCL）验证试验；最大运行负荷（MML），规定机械负荷（SML），最大运行负荷下顶端偏移量；装配好的芯棒负荷-时间试验；96h耐受负荷检查；
