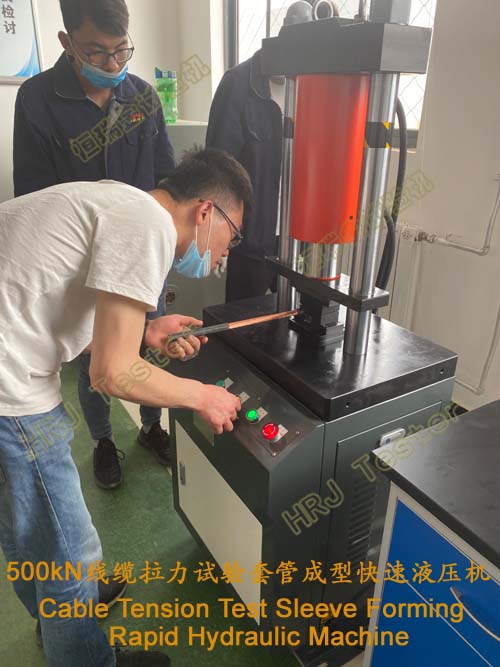

首页 >> 试验机案例 >> 500kN线缆拉力试验套管成型快速液压机Cable Tension Test Sleeve Forming Rapid Hydraulic Machine
500kN线缆拉力试验套管成型快速液压机,用于电线电缆拉力试验两端夹持用套管压制成型，保证拉力试验过程中夹持力足够大，电线电缆不产生滑移和夹持受损，保证线缆拉力测试准确度。
500kN线缆拉力试验套管成型快速液压机,适用于合钢芯铝绞线拉力、硬铜绞线硬铝绞线铝合金绞线拉力、电力机车线拉力、信息传输复合线缆拉力、架空裸单线裸绞线拉力、低压中压高压电力电缆拉力、绝缘电缆控制电缆特种电缆拉力。满足截面积1000mm2-800mm2电线电缆拉力试验。
→增加工装附具,可用于电力电缆导管压制、裁切冲片落料、金属挤压成型、薄板拉伸弯压，零部件装配拆卸校直校正,压印压痕调弯整形压延冲孔，粉末成型压装，可塑性材料压制成型。
→线缆拉力试验套管成型快速液压机荷载500kN（可定制1000kN），系统压力40MPa，液压机压制速度150mm/min。
→线缆拉力试验套管成型快速液压机液压缸行程0～300mm，液压机模具空间＞150mm。
→点动按钮控制快速上升、快速下降。试验套管成型模具，高强度材料精密制作，多种规格可供选择。
