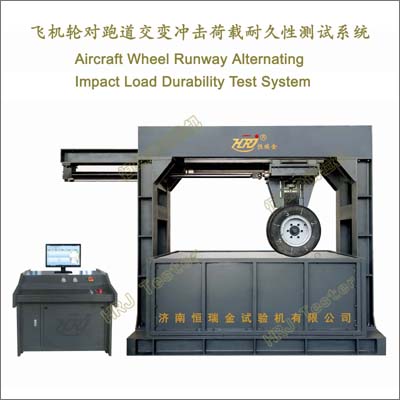

飞机轮对跑道交变冲击荷载耐久性测试系统
Aircraft Wheel Runway Alternating Impact Load Durability Test System
功能参数：
→采用道面模拟材料，测试飞机起落滑行时轮胎对跑道道面冲击荷载，分析道面力学性能变化状况，评估飞机跑道服役安全期。
→对道面坑洼凹槽裂纹划痕等摩擦冲击损毁状况进行评估，为道面修复提供参考数据。
→飞机轮对跑道交变冲击荷载耐久性测试系统由四部分组成：垂向交变加载系统，水平交变加载系统，数据采集处理测控系统，荷载耐久性测试台架系统。
→垂向交变加载系统荷载±100kN。
→垂向交变加载伺服液压缸行程±150mm。
→垂向交变加载速度容量：0.05～300 mm/min内允许最大荷载，300～500 mm/min内允许1/4最大荷载。
→水平交变加载系统荷载±10kN。
→水平交变加载往复行程±500mm。
→水平交变加载速度容量0～48m/min。
→荷载耐久性测试道面尺寸LWH≈2500x1500x900mm。
→荷载耐久性测试飞机轮直径≤￠851mm(可定制￠1168mm)。
→荷载耐久性测试台架LWH≈4000x2100x3000mm。
→飞机轮对跑道交变冲击荷载耐久性测试系统总功率≈20kW, ～380V±10% 50Hz（须可靠接地）。
→HRJ-Test耐久性试验数据采集处理测控系统。
引用标准、文献文件：
GB/T13652-2023航空轮胎表面质量；GB/T15324-2023航空轮胎内胎物理性能试验方法；10N.m～25000N.m轮胎式联轴器；GB/T5844-2025；GB/T6326-2023轮胎术语；GB/T13651-2023航空翻新轮胎；GB/T9746-2013航空轮胎系列；低速高速航空轮胎动态模拟试验；GB/T9747-航空轮胎试验方法；HG/T2195-2013航空轮胎使用与保养；HG/T2485-2011航空轮胎气门芯；MH/T5065.1-2023通用机场选址技术指南；跑道型机场；MH/T5004-民用机场水泥混凝土道面设计规范；MH/T5002-2020运输机场总体规划规范；MH 5006-2015民用机场水泥混凝土面层施工技术规范；MH 5007-2017民用机场飞行区场道工程质量检验评定标准；MH/T5024-2019民用机场道面评价管理技术规范；MH/T5050-2021民用运输机场水泥混凝土道面沥青隔离层技术指南；MH/T5110-2015民用机场道面现场测试规程；1000kN飞机轮轴千斤顶校准测试系统；AJ-CT30T/50T/60T飞机千斤顶检定装置压力试验机系统；AJ-CT300kN(67 500lbf)；AJ-CT500kN(112 500lbf)；AJ-CT600kN/135000lbf；AJ-CT1000kN(225 000lbf)；GB/T21120-水泥混凝土和砂浆用合成纤维/混凝土冲压冲击试验装置；支护结构模拟激振波冲击特性动态测试装置；三维协调加载高速试验机系统；100k低温环境混凝土拉伸冲击试验机（-197℃)；支重轮磨合跑合疲劳耐久寿命试验机；150kN车轮轮毂旋转弯曲疲劳试验机；浮动油封动态密封及可靠性试验三维力测试系统；联轴器膜片拉弯扭三维动力荷载疲劳试验系统；金属膜片拉摆扭三轴疲劳试验机系统；ASTM F2634-15 HDPE热熔对接接头高速拉伸冲击试验机；
Aircraft Wheel Runway Alternating Impact Load Durability Test System；Surface quality of aircraft tires；Retreaded aircraft tyres；HRJ Tester；Test method of the physical properties for inner tube of aircraft tyres；Tyre-Vocabulary；Series of aircraft tyres；Dynamometer test methods for aircraft tyres；Technical guidance for site selection of general aviation aerodrome；Specifications for Airport Cement Concrete Pavement Design；Code for master planning of transport airport；Specification for pavement evaluation and management of civil airports；Guidelines for asphalt isolation layer of civil transport airport cement concrete pavement；Aircraft Wheel Shaft Jack Calibration Testing System；Aircraft Jacks Calibration Device Compression Testing Machine System；Synthetic fibres for cement concrete and mortar；Three-Dimensional Coordinated Loading High-Speed Tester System；Low Temperature Concrete Compressive Strength Tester；Low Temperature Concrete Tensile Strength Tester；Low Temperature Concrete Tensile Impact Strength Tester；Bionix Hip Wear Simulator Tester；Bionix Knee Wear Simulator Tester；Steel Rails Flexural Compressive Fatigue Tester；Hardware Tool Torsion Fatigue Testing Machine；HRJ Tester；Pipe Fittings Torsion Fatigue Testing Machine；Universal Joint Torsion Fatigue Tester System；Air Spring Two-Dimensional Stiffness Fatigue Tester；Commercial Vehicles Cab Air Spring Fatigue Life Tester；Carbon Fiber High-speed Strain Tensile Tester；Manhole Cover Load Dynamic Fatigue Testing System；Repeated Tension Compression Fatigue Tester for Grout Sleeve Splicing of Rebars；Medical Device Products Fatigue Life Testing System；Implants for Surgery Cyclic Fatigue Testing Machine；Railway Tunnel Anchor Channel Bolt Fatigue Tester；Floating Seal Running Wear Leakage Performance Tester；Sealing Ring High Low Temperature Compressive Torsion Fatigue Tester；Track Rollers Running Wear Fatigue Durability Life Tester；Wheel Hub Rotating Moment Vibration Acceleration Fatigue Tester；Wheel Rotating Bending Fatigue Tester；Corrugated Pipes Two-Dimensional High Temperature Fatigue Tester；Tunnel Boring Machine Disc Cutter Friction Wear Fatigue Life Testing System；Electronic Servo Dynamic Fatigue Tester；Rubber Elastic Cushion Pads Fatigue Tester；Rubber Elastic Pads Fatigue Tester；Optical Fibre Cables Torsion Bending Fatigue Tester；Resin Anchor Bolts Axial Tension Load anchoring Force Torsion Testing Machine；Couplings Torque Calibration Pregrinding Test Platform；Wind Turbines Couplings Torque Test System；Coupling Diaphragm Tensile Bending Torsion 3D Dynamic Load Fatigue Test System；Metal diaphragm tensile swinging torsion fatigue testing system；Concrete Fatigue Strength Testing Machine；Double Hydraulic Cylinder Lift FIBC Automata Load Drop Tester；Construction Machinery Heavy Equipment Transport Vehicles Component Dynamic Fatigue Testing System；HRJ Tester；Medical Engineering Medical Device Product Biological Materials Mechanical Testing System；Rail Transit Highway Water Transportation Construction Material Engineering Quality Testing System；Hydraulic Servo Universal Material Tester Horizontal Tensile Testing Machine；Steel Strand Relaxation Static Load Anchoring Test Machine；Tension Creep Rupture Strength Testing Machine；Hydraulic Servo Constant Stress Compressive Testing Machine；Hydraulic Jack Verification Reaction Frame Structural Multi-functional Test System；Laminated Veneer lumber Structural Timber Wood Mechanical Properties Test System；Metal Wire Material Bolt Connection Components Torsion Properties Testing Machine；Spring Tension Compression Torsion Fatigue Stiffness Properties Testing Machine；High-speed Tensile Testing Machine System；Low-speed Tension Compression Testing Machine System；Electronic Universal Tension Compression Flexural Torsion Material Intelligence Test System；Steel Bar Steel Tube Metal Material Components Member Flexural Testing Machine；Mechanics Calibration Verification Standard Machine；Special Custom Non-Standard New Scientific Research Testing Machine System；Three-Position Steel Bar Bend Tester；Metal Materials Bending Tester；Material Components Tension Compression Bending Fatigue Tester；HDPE Butt Fusion Joints High-speed Tensile-Impact Testing Machine；Aluminium alloy sheets and strips High-speed Tensile Tester；Seal Element High-speed High-Low Temperature Tensile Fatigue Testing Machine System；Slow Strain Rate Tension Stress Corrosion Testing Machine；Low-speed Tensile Tester；No Vibration Servo Steel Strand Tensile Tester；No Vibration Steel Bars Tensile Tester；Steel Strand Skew Tensile Testing Machine；Composite Insulator Core Stress Corrosion Tester；Medical Hydrogel Tensile Tester；Fully-graded Concrete Flexural Strength Tester；Ultra-high Performance Concrete Tensile Strength Tester；Wall Panel Light-gauge Steel Furring Load Impact Properties Tester；Slip Coefficient of Faying Surface Tester；Mean Slip Coefficient Testing Machine；Prefabricated Wood I-Joists Static Bending Performance Tester；
